Approval drawings
Updated

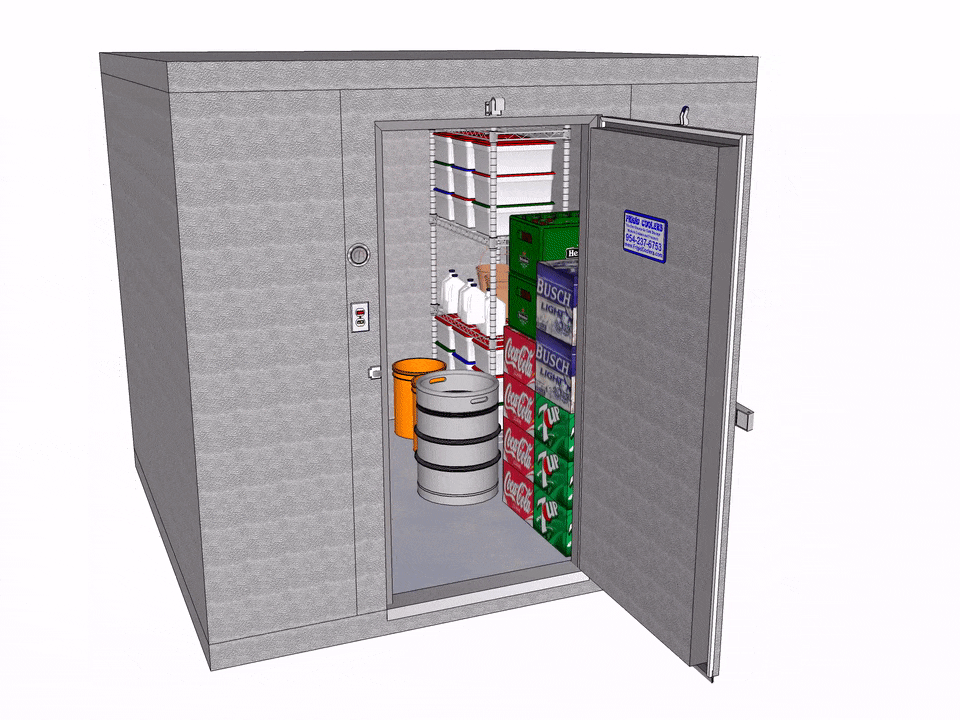

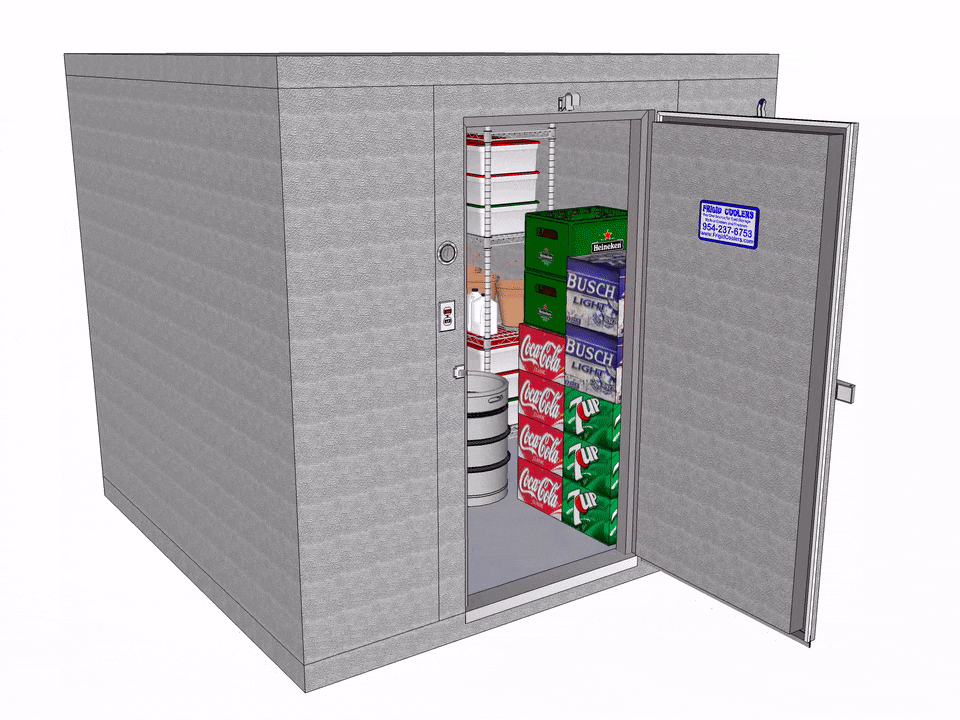

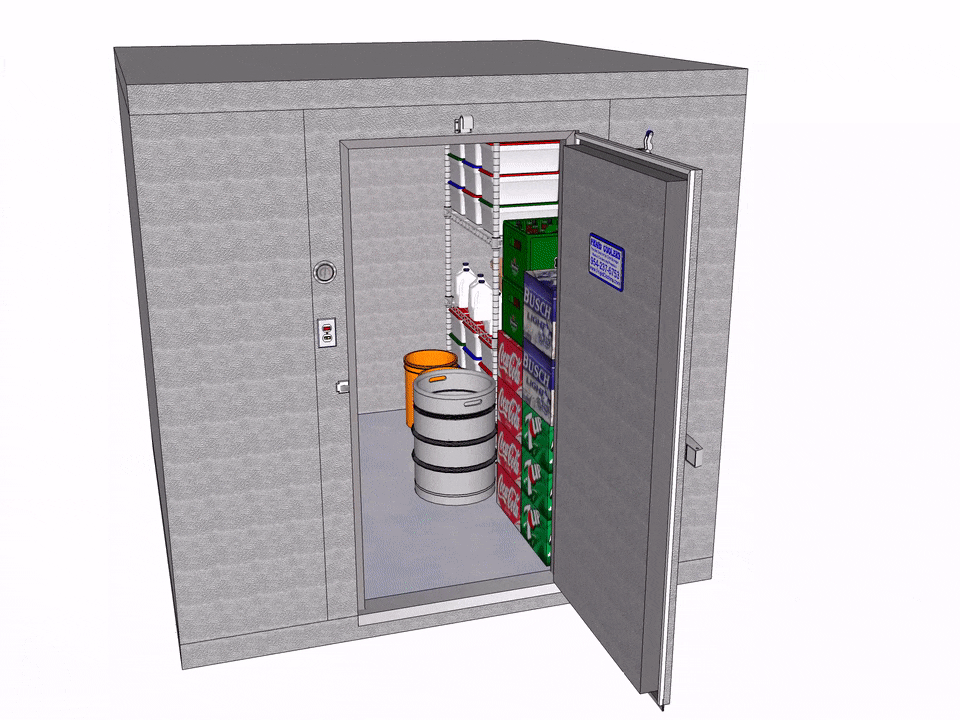

Every walk-in we quote gets a dimensioned approval drawing to sign before your order goes in. These are real sheets from real quotes, sorted by the kind of walk-in so you can find one like yours, each kind with 3D pictures and a 3D video from our quote program first.
Every walk-in here has a model number, like Model C01. Seen one you like? Tell us the model when you call or write, and we start your quote from it.
-
Walk-in coolers and freezers
Cooler and freezer combinations
Glass door walk-ins
L-shape walk-ins
Flower coolers
Plug door retrofits
Sliding doors
Looking for a size? Jump to the drawing nearest your footprint, smallest first. Every size in between is made to order.
-
4′ × 6′ cooler
6′ × 8′ flower cooler
8′ × 8′ cooler
8′ × 10′ freezer
8′ × 10′ flower cooler
8′ × 11′ glass door freezer
8′ × 12′ cooler + freezer
8′ × 12′ freezer
10′ × 10′ freezer
10′ × 10′ freezer, 10 ft high
10′ × 12′ cooler
7′ × 20′ cooler
10′ × 18′ flower cooler
7′ × 27′ cooler + freezer
8′ × 26′ glass door cooler
12′ × 22′ outdoor cooler + freezer
15′ × 24′ two coolers + freezer
16′ × 24′ glass door cooler
20′ × 20′ freezer with ramp
39′ × 46′ L-shape, 23 glass doors
Walk-in coolers and freezers

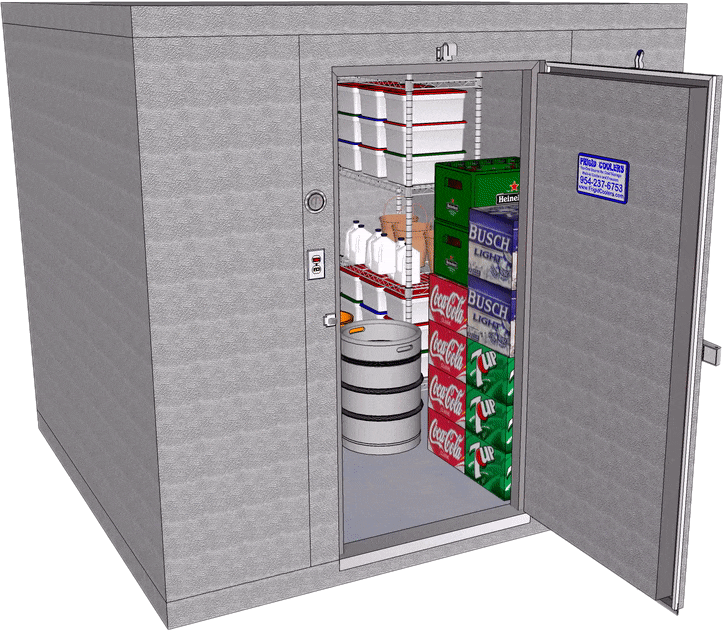

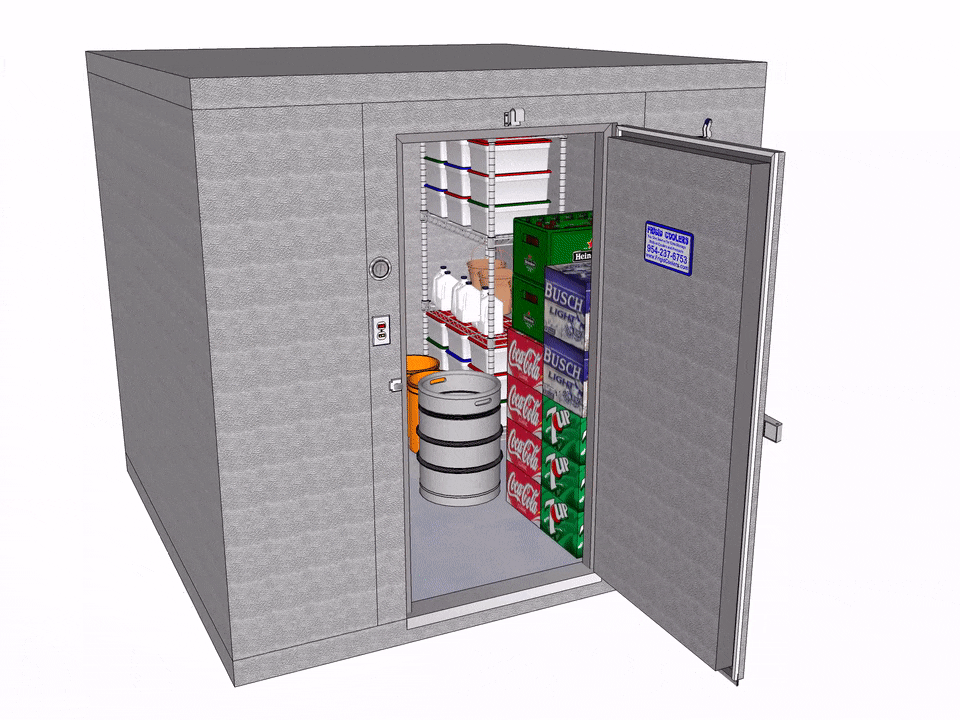

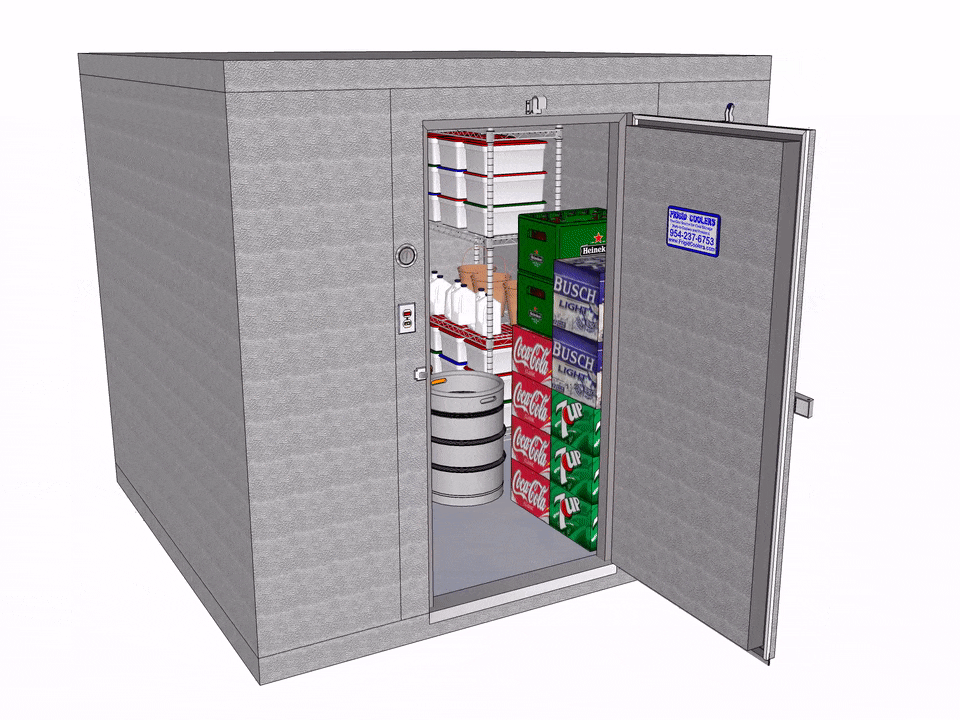

From a 4′ × 6′ cooler to a 7′ × 20′ cooler, and freezers from 8′ × 10′ to a 20′ × 20′ freezer with a reinforced floor and an outside ramp, each with the evaporator, the door and the wall profile called out.
Cooler and freezer combinations
A cooler and a freezer in one box, through a door between the rooms or each with its own front door, indoor or outdoor, up to three rooms side by side.
Glass door walk-ins
Walk-in coolers and freezers with a run of LED glass doors on the store side, from four doors to ten, with a solid or a full glass entrance door.
L-shape walk-ins
Glass doors that turn the corner of the store: one cooler, or three coolers and a freezer in one L-shape.
Flower coolers
Flower coolers from a 6′ × 8′ to a tall 18′ × 10′ with a low velocity evaporator, view windows and a full glass entrance door so the flowers sell themselves.
Plug door retrofits
A new plug door and frame fitted into the opening of a cooler or freezer you already own. The callouts on these drawings show how the inside frame secures to the outer frame.
Sliding doors
Hung on an overhead track, for openings with no room for a door to swing or traffic heavy enough that a swinging door becomes a hazard.
Need a drawing for your opening?
Send the inside dimensions and what you are storing. You get a dimensioned approval drawing to sign off, and a real number, usually the same day.
